Precision. Every machine component must meet stringent specifications to function correctly within the system. One critical aspect of threaded fasteners, which are ubiquitous in machinery, is the metric pitch diameter. This blog post explores the metric pitch diameter, specifications, and crucial role in engineering and manufacturing.
What is Metric Pitch Diameter?
Metric pitch diameter is a vital measurement in the world of screws, bolts, and threaded fasteners. It refers to the theoretical diameter of a screw measured from the midpoint of the thread profile. This measurement is crucial because it represents the diameter that achieves engagement between male and female threaded parts, such as a bolt and a nut.
Specifications of Metric Pitch Diameter
The specification of metric pitch diameter involves several key elements:
- Thread Size: This is typically denoted by a number (e.g., M10, M20), indicating the nominal diameter in millimeters.
- Pitch: The distance between thread crests, expressed in millimeters, determines the thread spacing. Standard pitches include 1.0 mm, 1.5 mm, and 2.5 mm, depending on the thread size and application.
- Thread Angle: Most metric threads have a standardized angle of 60 degrees, which affects their profile.
These specifications are governed by international standards, such as ISO (International Organization for Standardization), to ensure compatibility and interchangeability among components and equipment.
Importance of Metric Pitch Diameter in Engineering
Metric pitch diameter plays several critical roles in engineering:
- Ensuring Mechanical Integrity: The correct pitch diameter ensures that threaded fasteners fit appropriately with their corresponding parts. An incorrect pitch diameter can lead to loose fittings, which may result in parts detaching or failing under stress.
- Load Distribution: Proper thread engagement, facilitated by the correct pitch diameter, allows for an even load distribution across all threads. This even distribution is crucial for maintaining the structural integrity of assemblies under operational stresses.
- Preventing Wear and Tear: Adequate pitch diameter minimizes the risk of stripping threads during fastening, which can be costly and time-consuming to repair. It also ensures that the fasteners can be reused reliably, vital in applications requiring regular maintenance and disassembly.
- Facilitating Accurate Measurements and Quality Control: In manufacturing, precise measurements like pitch diameter are critical for quality control. They ensure that every part produced meets the required specifications and performs as expected in its application. This precision is crucial not only for the functionality of individual parts but also for the safety and longevity of the entire system in which they are used.
Applications of Metric Pitch Diameter
The applications of metric pitch diameter are vast and varied across different sectors of engineering:
- Automotive Industry: In the automotive sector, metric pitch diameter is critical for engine parts, where precise thread engagement ensures leak-proof sealing under high pressures and temperatures.
- Aerospace Engineering: The aerospace industry demands extreme precision, and the integrity of every threaded joint can impact aircraft safety and performance.
- Construction and Infrastructure: In construction, fasteners with a specified pitch diameter hold structures together, bearing loads and resisting environmental stresses.

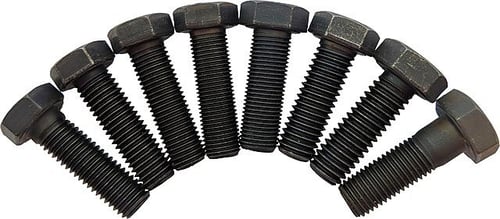

Image By Christoph Roser at AllAboutLean.com
Metric pitch diameter is a fundamental concept in engineering that affects the design, production, and functionality of various mechanical systems. Understanding and adhering to the specifications of pitch diameter is crucial for engineers and manufacturers to ensure the reliability and efficiency of their products. As we continue to push the boundaries of what is technically possible, the precision in such measurements will only grow in importance, underscoring the critical role of engineering standards in the global manufacturing landscape.
Ensuring that all components meet the required specifications is vital for any engineering project. Metric pitch diameter is one such specification due to its significant impact on the functionality and safety of threaded joints.
