In the mechanical assembly world, threaded fasteners' precision is paramount. Among the numerous dimensions that require careful specification, pitch diameter stands out as a critical parameter that can significantly influence the performance and longevity of mechanical components. It is essential to ensure that male and female threads mesh perfectly, maintaining assemblies' structural integrity and functionality. This blog post will explore common mistakes in specifying pitch diameter and referencing relevant ISO and ASME standards to guide best practices.
Understanding Pitch Diameter
Definition and Role

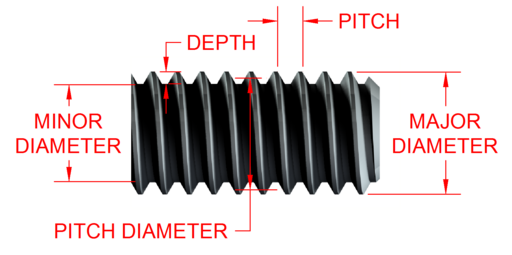

Pitch diameter can be defined as the imaginary cylinder where the width of the thread equals the space between the threads. This dimension plays a pivotal role in ensuring compatibility between threaded components, helping to guarantee that the connection remains robust and reliable under operational conditions. The accuracy of pitch diameter is vital for load distribution and engagement within the threaded mechanism, directly impacting performance.
Common Mistakes in Specifying Pitch Diameter
1. Incorrect Measurement Techniques
One of the most frequent errors occurs due to improper measurement methods. Incorrect tools or techniques can skew results and lead to unsuitable specifications. According to ASME B89.1.17, accurate measurement should be done using thread measuring wires. These best practices can mitigate costly mistakes and ensure the pitch diameter is correctly calculated.
2. Misinterpretation of Standards
Another common pitfall is misinterpreting established standards such as ISO 68-1 and ASME ISO 724:1993. Misinterpreting these guidelines can lead to incorrect specifications and incompatibilities. It's crucial to familiarize oneself with the correct standards to ensure accurate engineering outputs and avoid design flaws.
3. Neglecting Tolerances
Failing to consider the tolerances specified in standards like ASME B1.1 and B1.13M can have serious consequences. Ignoring these tolerances may result in assembly issues, performance degradation, or even component failure. Precise tolerance specifications are essential to producing reliable connections.
4. Overlooking Material and Coating Effects
The choice of materials and coatings can significantly influence pitch diameter measurements and functionality. Different materials can behave differently under load, and coatings can alter the effective size of threads. It is advisable to consult material-specific guidelines when specifying threaded fasteners.
How to Avoid Mistakes When Specifying Pitch Diameter
1. Use Appropriate Tools and Techniques
Precision measurement tools such as micrometers, thread gauges, and measurement over wire are essential for accurate pitch diameter measurement. Referencing ASME B1.2 can provide additional guidelines on the appropriate gages and gaging methods for unified-inch screw threads.
2. Adhere to Relevant Standards
Consistent consultation of standards, including ISO 68-1, ASME ISO 724:1993, ASME B1.1, and ASME B1.13M, is imperative during the specification process. Understanding how to interpret these standards can prevent miscalculations and errors.
3. Regular Training and Audits
Engineers should regularly receive training on the latest standards and measurement techniques to reinforce best practices in specifying pitch diameter. Furthermore, periodic audits can help ensure compliance with established tolerances and standards.
The specification of pitch diameter is often overlooked yet profoundly impacts the performance of threaded fasteners. By understanding its role, recognizing common mistakes, and adhering to established standards, engineers can significantly improve the reliability and integrity of mechanical assemblies. Regular training, precise measurement techniques, and diligent reference to relevant standards will foster a culture of precision that ultimately leads to successful outcomes in engineering projects.
